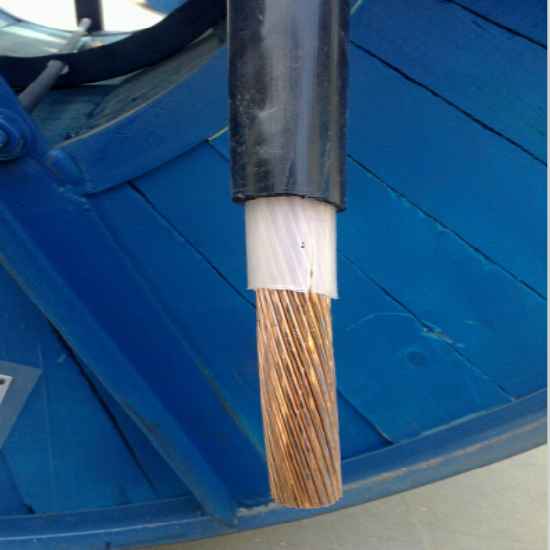

Cable Black 1C 50mm2 70mm2 95mm2 120mm2 300mm2 500mm² XLPE/PVC Copper Single Core Cable IEC60502 Standard

Basic Properties
Place of Origin: Hebei, China
Brand Name: Minfeng
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: Single Core Cable
Trading Properties
Minimum Order Quantity: 100m
Price: 0.1-5
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Tags

XLPE Submarine Cable

XLPE Insulated Armoured Cable

XLPE Power Cable
Specifications
Cable Shield: Unshielded/Shielded Nominal Voltage: 0.6/1 KV
Drum Length: 300m Per Drum Model No: Single Core Cable
Trademark: Minfeng Cable Group Standard: AS/NZS IEC60502-1
Packing: Treaty Steel Wooden Drum Cable Mark: Ink Printing Or Embossing
Minimum Order: Negotiable
High Light:

XLPE PVC copper power cable

,

single core cable IEC60502 standard

,

XLPE insulated copper cable 500mm2
Product Description
Cable Black 1C 50mm² 70mm² 95mm² 120mm² 300mm² 500mm² XLPE/PVC Copper Single Core Cable IEC60502 Standard
Product Overview

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.

Key Specifications
Rated Voltage 0.6 kV, 1 kV
Conductor Material Copper
Insulation Material PVC
Jacket PVC
Application Construction, Industrial, Building, Power Station, Underground
Type Low Voltage
Standard IEC60502
Core Single Core
Color Black
Certificate ISO9001/CCC
Cable Construction
  • Conductor: Plain annealed copper
  • Insulation: XLPE X-90
  • Insulation colour: black, other colors are available upon request
  • Sheath: Polyvinylchloride compound PVC 5V-90
  • Sheath colour: Black, other colors are available upon request
Technical Standards
  • AS/NZS 5000.1
  • AS/NZS 3008
  • AS/NZS 1125
  • IEC60502-1
Technical Parameters
No. of cores and nominal cross section (mm²) Thickness of Insulation (mm) Thickness of Sheath (mm) Approx. Overall Diameter (mm) Approx. weight (kg/km) Max. DC resistance of conductor(20℃) (Ω/km) Current carrying capacity In Air(A) Current carrying capacity In Ground(A)
1X1.50.71.45.54812.12332
1X2.50.71.45.9597.413142
1X40.71.46.4754.614155
1X60.71.46.9953.085269
1X100.71.48.01401.837192
1X160.71.49.02001.1592115
1X250.91.410.63100.727120150
1X350.91.411.64100.524150180
1X501.01.413.15100.387180215
1X701.11.415.07100.268230265
1X951.11.516.89900.193285320
1X1201.21.518.412300.153335360
1X1501.41.620.514500.124385410
1X1851.61.622.618000.0991450460
1X2401.71.725.223000.0754535535
1x3001.81.827.829600.0601620605
1x4002.01.931.438000.0470720685
1x5002.22.034.948000.0366835775
1X6302.42.239.161000.0283960865
Cable Black 1C 50mm2 70mm2 95mm2 120mm2 300mm2 500mm² XLPE/PVC Copper Single Core Cable IEC60502 Standard
Packaging & Shipping

Packing: Steel wooden drum (fumigation)

Cable length: 1000m/2000m per drum or as per actual cable length requirements

Drum size: As per cable length and container size

Shipping Port: Tianjin, Qingdao, or other ports as per your requirements

Sea freight: FOB/C&F/CIF quotation are all available

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency
