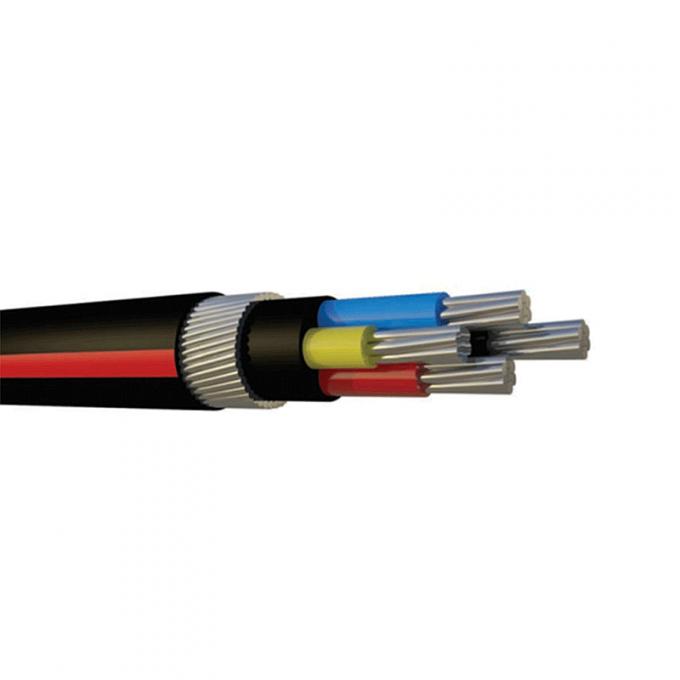

50mm2 70mm 95mm2 120mm 4 Core Electric Power Cable with Aluminum Conductor XLPE SWA PVC Armoured Competitive Price

High-quality 4-core aluminum conductor power cable featuring XLPE insulation, steel wire armouring, and PVC sheath. Designed for low voltage electrical distribution systems with competitive pricing.

• Rated Voltage: 0.6 kV, 1 kV
• Conductor Material: Aluminum
• Insulation Material: XLPE (Cross-linked Polyethylene)
• Working Temperature: 90°C
• Jacket Material: PVC
• Application: Underground installation
• Type: Low Voltage Power Cable
• Standard: IEC60502
• Place of Origin: Hebei, China
• Brand: Minfeng

Steel Wire Armoured (SWA) Cable is designed for mains electricity distribution in various applications, including underground laying, power networks, and incoming mains to residential and commercial buildings. Suitable for both external and internal use.

This cable type is ideal for direct burial installations, with the steel wire armouring providing enhanced protection against external damage. The XLPE insulation offers excellent resistance to various fluids, chemicals, and UV radiation, along with superior heat stability.

• BS 5467
• IEC/EN 60502-1
• IEC/EN 60228
• Flame Retardant according to IEC/EN 60332-1-2

• Conductors: Plain circular, compacted or shaped stranded aluminum conductor (RE=circular solid, CC=compacted circular stranded, SM=sector shaped stranded)
• Insulation: XLPE (cross-linked polyethylene) rated at 90°C
• Armour: Galvanized Steel Wires applied helically over bedding
• Sheath: Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467

Cables can be supplied with special flame retardant PVC outer sheath to comply with flame test requirements of IEC 60332-3 series, or with Low Smoke Halogen Free (LSHF) material according to various international standards.

• Voltage: 600/1000V
• Operating Temperature: Maximum 90°C, minimum bending 0°C
• Maximum Short-circuit Temperature: 250°C (max. 5s)
• Minimum Bending Radius: 20× cable diameter (armoured)
