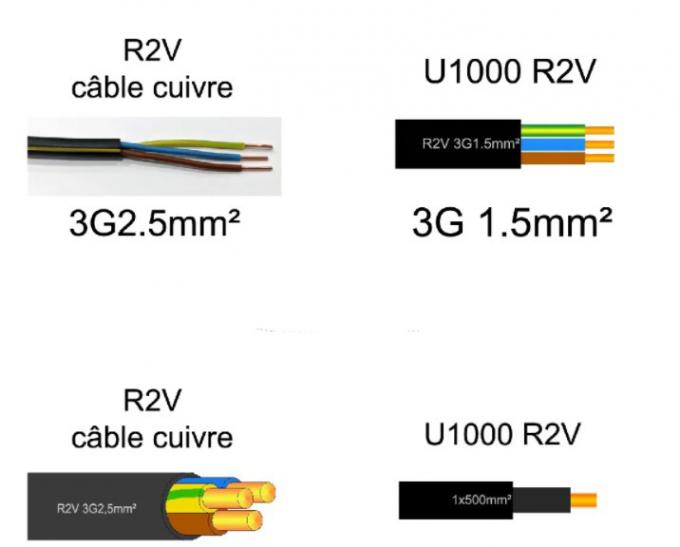

3G1.5mm2 3x2.5mm2 3x25mm2 U-1000 R2V/XV/RV RVFV R02V ARVFV XLPE CABLE
| Conductor Material: | Copper | Sheath: | PVC |
| Packing Length: | 500 Meters Per Drum | Free Sample: | Yes |
| Cable Mark: | Ink Printing Or Embossing | Rated Voltage: | 0.6/1kV |
| Insulation Material: | Xlpe | Main Market: | Asia,Africa |
| Minimum Order: | 500 M | Range Of Application: | Underground |
| High Light: | XLPE insulated power cable,3G1.5mm2 RVFV cable,3x25mm2 U-1000 R2V cable |
||
These cables are designed for the transport and distribution of low voltage electricity. Recommended for industrial connections, service connections, internal distribution and outdoor connections. Suitable for underground networks and permanent installations.
Reference Standards: UNE 21123, HD 603 S1 and IEC 60502
| Type | Insulated |
|---|---|
| Rated Voltage | U 1000V |
| Conductor Material | Copper |
| Insulation Material | XLPE |
| Conductor Type | Stranded |
| Application | Underground |
| Core | 3 Cores |
| Size Range | 16sqmm-630sqmm |
| Jacket | PVC |
| Package | Wooden |
- Underground networks for low voltage distribution
- Underground supply networks for outdoor lighting installations
- Electricity distribution networks
- Underground service connections
- Indoor or receiver installations
- Installations in premises with special characteristics
- Conductor: Electrolytic copper conductor, Class I and II, according to IEC 60228, BS EN 60228:2005 and UNE 60228
- Insulation: Cross-linked polyethylene insulation (XLPE), type DIX-3, according to HD603S1 and UNE 21123
- Sheath: PVC sheath, type DMV-18, according to HD 603S1 and UNE 21123
- Nominal voltage: 0.6/1 kV
- Test voltage: 3,500 V A.C.
- Maximum temperature: 90°C
- Non-flame propagating according to NF 32070, UNE-EN 60332-1-2, EN 60332-1-2 and IEC 60332-1-2
- CPR Classification according to EN 50575
| Section | Color |
|---|---|
| 1.5mm² | Pink |
| 2.5mm² | Pale Yellow |
| 4mm² | Violet |
| 6mm² | Turquoise |
| 10mm² | Brown |
| 16mm² | Grey |
Colors according to UNE 21089 and HD 308S3:2001
