3x120+70mm2 3x150+70mm2 Power Cable Underground AR2V YJLV NA2XY NAYY YAKXS Cable 0.6/1KV

Basic Properties
Place of Origin: Hebei, China
Brand Name: Minfeng
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: AR2V YJLV NA2XY NAYY YAKXS Cable
Trading Properties
Minimum Order Quantity: 100m
Price: 0.1-5
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Tags

XLPE Submarine Cable

XLPE Insulated Armoured Cable

XLPE Power Cable
Specifications
Core Mark: Number Or Color Strip Model No: AR2V YJLV NA2XY NAYY YAKXS Cable
Sheath Material: PVC Package: Steel Wooden Drum
Temperature: 90℃ Voltagerating: 0.6/1 KV
High Light:

3x120+70mm2 underground power cable

,

YJLV XLPE insulated cable

,

0.6/1KV NA2XY power cable
Product Description
3x120+70mm² 3x150+70mm² Power Cable Underground AR2V YJLV NA2XY NAYY YAKXS Cable 0.6/1KV
Product Overview

High-quality underground power cable designed for reliable power transmission in industrial applications. Features aluminum conductors with XLPE insulation for optimal performance and durability.

Key Specifications
Type Insulated
Rated Voltage 0.6/1KV
Conductor Material Aluminum
Insulation Material XLPE
Conductor Type Stranded
Application Underground
Place of Origin Hebei, China
Model Number YAKXS 3x150+70mm²
Brand Name Minfeng
Usage Power Transmission
Core 3+1
Size YAKXS 3x120+70mm²
Jacket PE/PVC
Package Wooden
Delivery Time 15-60 days
Colors As Request
Standard IEC 60502-1
Product Images

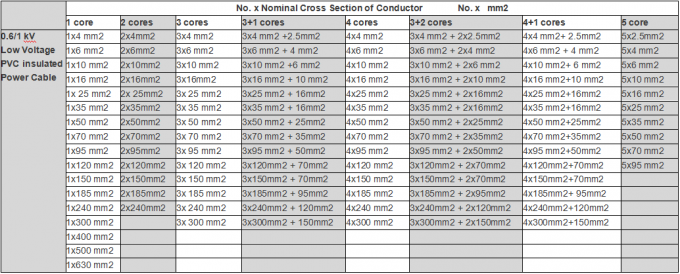

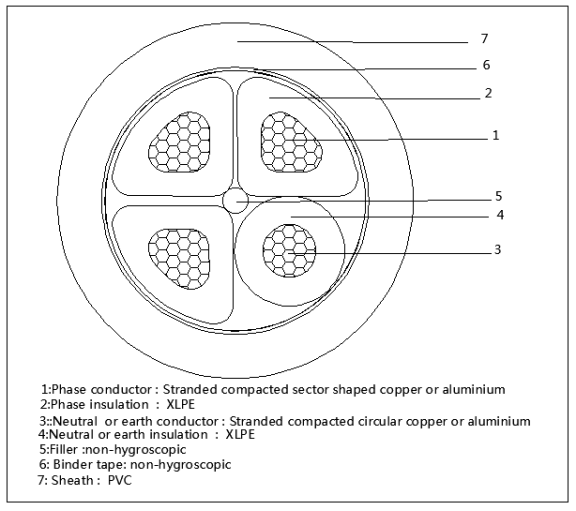

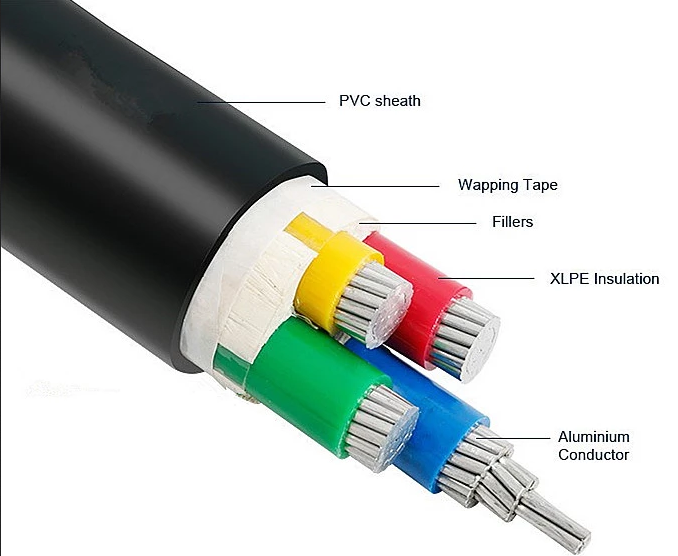

3x120+70mm² 3x150+70mm² Power Cable product view 3x120+70mm² 3x150+70mm² Power Cable cross-section 3x120+70mm² 3x150+70mm² Power Cable installation example
Technical Specifications

0.6/1KV 3x185+1x95mm² aluminium conductor XLPE insulation PVC sheath cable

Type Specification Outer Diameter of Conductor Nominal Thickness of Insulation Nominal Sheath Thickness Approx. Outer Diameter of Cable Approx. Weight of Cable Ampacity of Cable (Air) Ampacity of Cable (Soil)
YJV CU/XLPE/PVC YJLV AL/XLPE/PVC 3×4+1×2.5 RE 2.24/1.78 0.7/0.7 1.8 12.7 255.5/165.3 40/30 55/45
YJV CU/XLPE/PVC YJLV AL/XLPE/PVC 3×6+1×4 RE 2.76/2.24 0.7/0.7 1.8 13.9 349.4/212.6 50/40 65/55
YJV CU/XLPE/PVC YJLV AL/XLPE/PVC 3×10+1×6 CC 3.8/2.76 0.7/0.7 1.8 16.1 505.2/281.4 70/55 90/70
YJV CU/XLPE/PVC YJLV AL/XLPE/PVC 3×16+1×10 CC 4.8/3.8 0.7/0.7 1.8 18.6 730.9/370.2 90/70 110/90
YJV CU/XLPE/PVC YJLV AL/XLPE/PVC 3×25+1×16 CC 6.0/4.8 0.9/0.7 1.8 22.1 1093.4/527.5 130/105 150/120
YJV CU/XLPE/PVC YJLV AL/XLPE/PVC 3×35+1×16 CC 7.0/4.8 0.9/0.7 1.8 23.9 1384.8/632.4 165/130 185/140
YJV CU/XLPE/PVC YJLV AL/XLPE/PVC 3×50+1×25 SM 8.0/6.0 1.0/0.9 1.8 24.9 1901.4/813.3 200/160 210/170
YJV CU/XLPE/PVC YJLV AL/XLPE/PVC 3×70+1×35 SM 9.5/7.0 1.1/0.9 1.9 28.7 2599.1/1075.7 285/203 265/203
YJV CU/XLPE/PVC YJLV AL/XLPE/PVC 3×95+1×50 SM 11.0/8.4 1.1/1.0 2.1 31.9 3470.6/1387.6 320/255 315/250
YJV CU/XLPE/PVC YJLV AL/XLPE/PVC 3×120+1×70 SM 12.4/10.0 1.2/1.1 2.2 34.9 4401.4/1727.7 380/300 360/285
YJV CU/XLPE/PVC YJLV AL/XLPE/PVC 3×150+1×70 SM 13.8/10.0 1.4/1.1 2.3 38.9 5309.0/2075.6 440/350 400/320
YJV CU/XLPE/PVC YJLV AL/XLPE/PVC 3×185+1×95 SM 15.4/11.5 1.6/1.1 2.5 44.2 6614.5/2572.9 505/490 435/350
YJV CU/XLPE/PVC YJLV AL/XLPE/PVC 3×240+1×120 SM 17.5/13.0 1.7/1.2 2.7 48.5 8456.4/3233.4 603/471 524/415
YJV CU/XLPE/PVC YJLV AL/XLPE/PVC 3×300+1×150 SM 19.6/14.5 1.8/1.4 2.9 53.4 10499.0/3970.2 700/545 605/465
Key Features
  • Conductors: Aluminum
  • Available Types: Both armored and non-armored type power cables are available
  • Voltage Rating: 0.6/1KV
  • Insulation: XLPE Insulated
  • Standards: IEC, BS, ASTM, NFC, AS, GOST etc. or other special characteristics as customers request
  • Max Long-time Operating Temperature: PVC insulated cable is 70°C, XLPE 90°C
  • Installing Temperature: Should not be less than 0°C
  • Max Short-circuit Temperature: PVC not exceed 160°C, XLPE 250°C, Not more than 5 Sec
  • Permitting Bending Radius: Not less than 12 D times (D: external diameter of cable)
