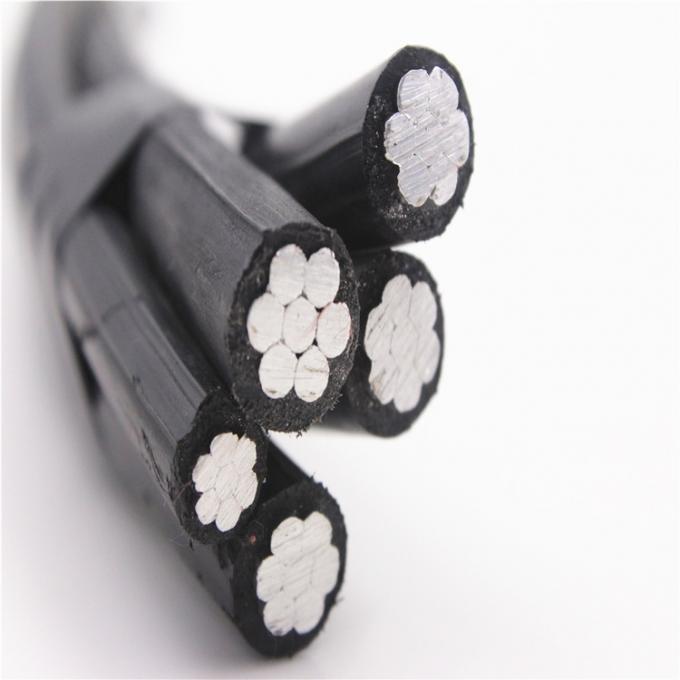

Aerial Bundled Cable (ABC) Low Voltage 0.6/1 KV 3x70 + 1x54.6 + 2x16 mm Aluminum NFC 33-209 Twisted XLPE Insulated Overhead IP65
| Conductor: | Aluminum | Origin: | China |
| Package: | Wooden Drum | Application: | Overhead Power Distribution |
| Corporation: | Minfeng Cable Group | Production Time: | 10days |
| High Light: | ABC Low Voltage 0.6/1 KV Cable,3x70 + 1x54.6 Aluminum ABC Cable,XLPE Insulated Overhead ABC Cable |
||
The Aerial Bundled Cable (ABC) Low Voltage 0.6/1 kV is a twisted overhead conductor assembly designed for reliable power distribution. Configured as 3x70 + 1x54.6 + 2x16 mm², it features aluminum conductors with XLPE insulation and complies with the NFC 33-209 standard. The bundled construction supports overhead installation with an IP65 rating and operates across a wide temperature range of -40°C to 150°C.
| Rated Voltage | 0.6 kV |
|---|---|
| Size | 3x70 + 1x54.6 + 2x16 mm² |
| Conductor Material | Aluminum |
| Insulation Material | XLPE |
| Working Temperature | -40°C ~ 150°C |
| Jacket | No Sheath |
| IP Level | IP65 |
| Application | Overhead |
| Rated Current | 50 A, 40 A, 30 A, 25 A, 20 A, 16 A, 10 A, 60 A |
| Type | Low Voltage |
| Place of Origin | Hebei, China |
| Model Number | 3*70+54.6+2*16 |
| Brand Name | OEM |
| Flame Retardant Class | Not Rated |
- High Voltage Protection: Rated at 0.6 kV for safe electrical transmission.
- Durable Aluminum Conductors: Long-lasting and resistant to corrosion.
- Customizable Configuration: 3x70 + 1x54.6 + 2x16 mm² for versatile applications.
- Insulated Design: Ensures safety and prevents electrical leakage.
- Twisted Structure: Enhances flexibility and reduces signal interference.
-
