  • Quality 4/0AWG 107mm2 Copper Cable 0.6/1kV TTU Cable I factory

4/0AWG 107mm2 Copper Cable 0.6/1kV TTU Cable I

Basic Properties
Place of Origin: Hebei, China
Brand Name: Minfeng
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: 0.6/1KV TTU cable
Trading Properties
Minimum Order Quantity: 100m
Price: 0.1-5
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Tags

XLPE Submarine Cable

XLPE Insulated Armoured Cable

XLPE Power Cable
Specifications
Working Degree: 90℃ Cable type: 0.6/1KV TTU Cable
Pakcing: Steel-wooden Drum Conductor material: Copper
Sheath: PVC Voltage: 0.6/1kV
Insulation: XLPE
High Light:

4/0AWG XLPE insulated power cable

,

107mm2 copper TTU cable

,

0.6/1kV XLPE power cable
Product Description
4/0AWG 107mm² Copper Cable 0.6/1kV TTU Cable
High-quality TTU cable designed for underground applications with excellent electrical properties and durability.
Product Specifications
Type Insulated
Rated Voltage 1KV
Conductor Material Copper
Insulation Material XLPE
Conductor Type Stranded
Application Underground
Place of Origin Hebei, China
Model Number 4/0awg TTU CABLE
Brand Name Minfeng
Standard BS IEC SANS DIN
Color Different color as request
Sample Freely Supplied
Packing Wooden Drum
Certification ISO9001/ISO14001/OHSAS18001/CCC

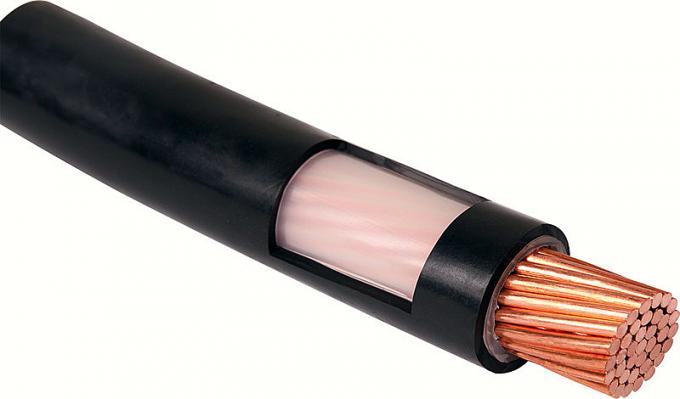

4/0AWG 107mm² Copper Cable 0.6/1kV TTU Cable product image
Standards and Specifications

TTU Cables are manufactured under the following standards:

  • ASTM B3 - Soft copper wire
  • ASTM B8 - Concentric Lay Stranded copper conductors
  • ASTM B787 - 19 Wire Combination Unilay Stranded Copper conductors for subsequent insulation
  • UL 1581, NET-3203 - Reference Standard for Electrical Wires, Cables and Flexible Cords
  • ICEA S-95-658 - Power Cables rated 2000 volts or less for the Distribution of Electrical Energy

We can also produce the TTU cables as per your requirements.

Cable Construction
  • Conductor: Compressed Stranded Soft copper
  • Insulation: Thermoplastic Polyethylene (PE 75°C) for PE-PVC, Cross Linked Polyethylene (XLPE 90°C) for XLPE-PVC
  • Options: Aluminum Conductor, PVC-LS (Low smoke emissions) jacket and PVC (Sunlight resistant) jacket
  • For sizes greater than 1/0 AWG, Type Tray Cable (TC)
Operating Characteristics
Operating Temperature Dry and wet locations
PE-PVC 75°C
XLPE-PVC 90°C
Operating Voltage 600V and 2000V
Conductor Standards

Conductor manufactured under standards: NEMA WC-5 • ICEA S-61-402 • ASTM B3, B8 • INEN

Available Colors

Cables (Sizes from 8 AWG to 1000 MCM): Black

Higher sizes (from 750 MCM until 1,000 MCM), available upon requirement

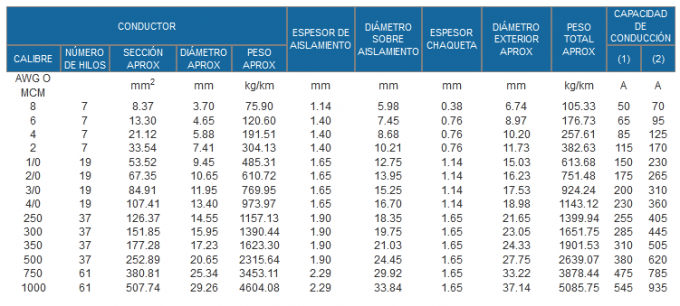

4/0AWG 107mm² Copper Cable technical specifications diagram
Technical Specifications Table
SIZE AWG O MCM CROSS SECTION AL mm² STRANDING INSULATION THICKNESS mm JACKET THICKNESS mm EXTERNAL DIAMETER mm TOTAL WEIGHT Kg/Km AMPACITY (1 conductor) Amp AMPACITY (3 conductors) Amp PACKAGING
88.377 x 1.231.140.386.73109.07050B,E,Z
613.307 x 1.551.140.768.45170.09565E,Z
421.157 x 1.961.140.769.68301.012585E,Z
233.627 x 2.471.140.7611.21376.0170115E,Z
142.367 x 2.781.401.1413.42461.5195130E,Z
1/053.4919 x 1.891.401.1414.53609.0230150D,E,Z
2/067.4319 x 2.121.401.1415.68747.0265175D,E,Z
3/085.0119 x 2.391.401.1417.03915.0310200D,E,Z
4/0107.2019 x 2.681.401.1418.481132.0360230D,E,Z
250127.0037 x 2.091.651.6521.231390.0405255Z
300152.0037 x 2.291.651.6522.631641.0445285Z
350177.0037 x 2.471.651.6523.891889.0505310Z
400203.0037 x 2.641.651.6525.082137.0545335Z
500253.0037 x 2.951.651.6527.252627.0620380Z
600304.0037 x 3.232.031.6529.973144.0690420Z
650329.0037 x 3.372.031.6530.953409.0725440Z
700355.0037 x 3.492.031.6531.793593.0755460Z
