  • Quality Torsade NFC 33-226 EDR 3*1*240mm2 Aluminum Conductor 12/20 (24)kv 19/30(36kv) HTA CIS MV ABC Cable factory

Torsade NFC 33-226 EDR 3*1*240mm2 Aluminum Conductor 12/20 (24)kv 19/30(36kv) HTA CIS MV ABC Cable

Basic Properties
Place of Origin: Hebei, China
Brand Name: Minfeng
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: HTA CIS
Trading Properties
Minimum Order Quantity: 100m
Price: 0.1-5
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Tags

Aerial Bundle Cable

ABC Electrical Cable

ACSR Conductor Cable
Specifications
Port: Shanghai Port Model Name: HTA CIS
Sheathed: PE Sheathed Voltage: 12/20 (24)kv 19/30(36kv)
Cable Standard: IEC Cable Application: Indoor
Free Smaple: Available
High Light:

Aluminum conductor ABC cable

,

HTA CIS MV ABC cable

,

NFC 33-226 EDR ABC cable
Product Description
Torsade NFC 33-226 EDR 3*1*240mm² Aluminum Conductor 12/20 (24)kv 19/30(36kv) HTA CIS MV ABC Cable
Product Overview
High voltage aluminum conductor cable designed for overhead applications, compliant with NF C33-226 standards.
Key Specifications
Type Insulated
Rated Voltage 12/20 19/30
Conductor Material Aluminum
Insulation Material PVC
Conductor Type Stranded
Application Overhead
Place of Origin Hebei, China
Model Number HTA CIS
Brand Name Minfeng/OEM
Size 3*1*240
Temperature Specifications
Maximum Conductor Temperature:
  • Operating temperature: +90°C
  • Short circuit: +250°C
These cables are suitable for all kinds of utilization and more particularly for connections:
  • In transformer stations and power stations
  • Between aerial lines and transformer stations
Product Image

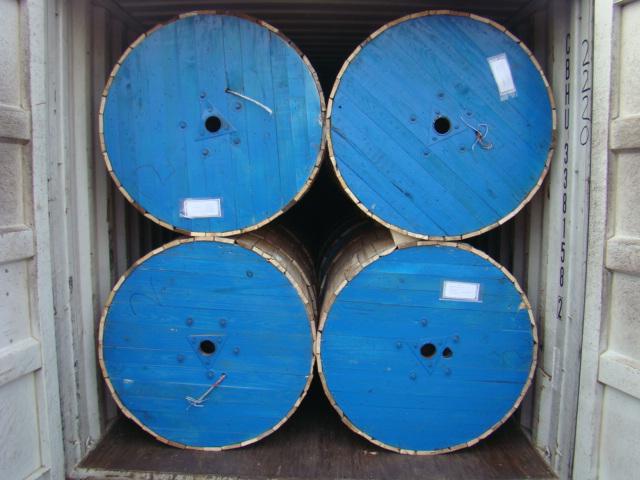

Torsade NFC 33-226 EDR 3*1*240mm² Aluminum Conductor HTA CIS MV ABC Cable
Technical Specifications Table
NF C33-226 | 12/20 kV
Section mm² Outer Diameter (mm) Max DC Resist. Ω/km Max. Tensile Strength (daN) Bending Radius (mm) Weight Approx. (kg/km)
50290.641150377 | 754700
95320.32285416 | 832950
150320.206450416 | 8321000
24036.50.125720475 | 9501400
400420.0781200546 | 10921950
63052.50.0471890683 | 13653100
1200660.0253600858 | 17165200
Bunched Cables
Section mm² Outer Diameter (mm) Max DC Resist. Ω/km Max. Tensile Strength (daN) Bending Radius (mm) Weight Approx. (kg/km)
3x1x5062.50.641450377 | 7542100
3x1x95690.32855416 | 8322800
3x1x150690.2061350416 | 8323050
3x1x24078.50.1252160475 | 9504150
3x1x400900.0783600546 | 1092-
