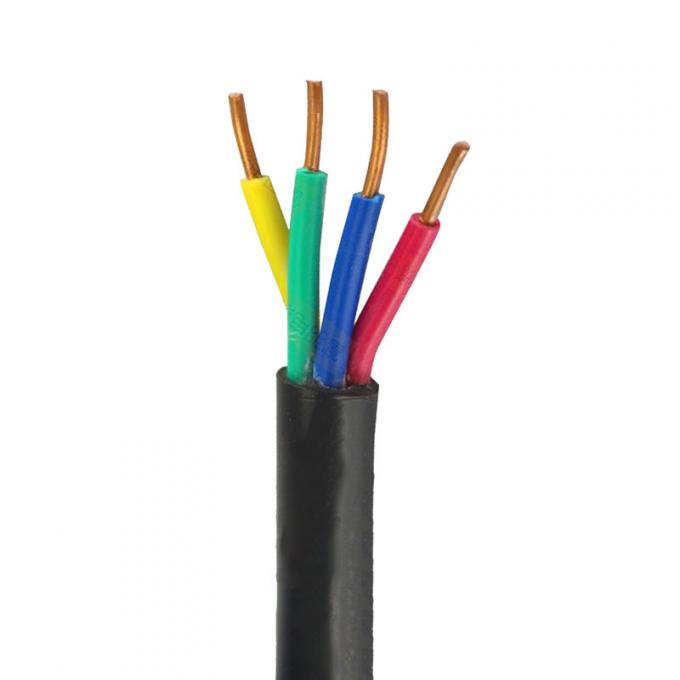

VGV Electrical Cable 3*4mm2 VGV Cable 3*4mm2
| Manufacturer: | Minfeng Cable | Sheathed: | PVC Sheathed |

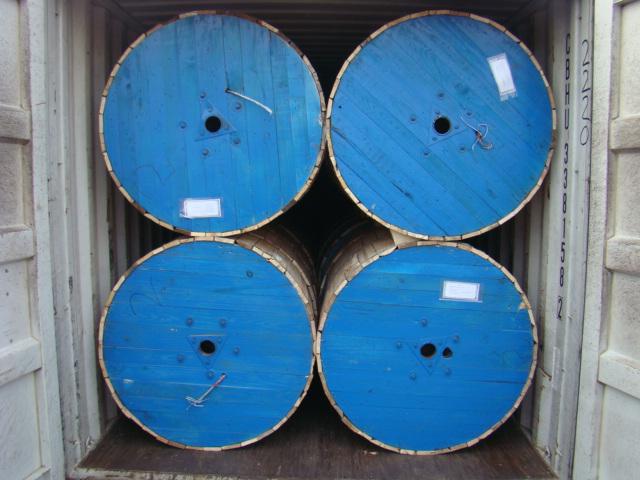

| Drum Length: | 500m Or As Per Request | Sample: | Available |
| Operating Temperature: | 90°C | Core: | 3 Core |
| Cable Type: | VGV Cable 3*4mm2 | Conductor: | Copper |
| Core Mark: | Ink Number Or Color Strip | ||
| High Light: | VGV electrical cable 3x4mm2 PVC insulated,3 core 4mm2 VGV power cable,VGV cable 3x4mm2 with PVC insulation |
||
High-quality VGV electrical cable with 3×4mm² configuration, designed for reliable performance in various electrical applications.
| mm² | Insulation Thickness (mm) | Sheath Thickness (mm) | Average Diameter (mm) | Finished Product Weight (kg/km) | 20°C Conductor Resistance ≤Ω/km |
|---|---|---|---|---|---|
| 2×0.5 | 0.5 | 0.6 | 5.9 | 32.8 | 39 |
| 2×0.75 | 0.5 | 0.6 | 6.3 | 39.2 | 26 |
| 3×0.5 | 0.5 | 0.6 | 6.3 | 42.1 | 39 |
| 3×0.75 | 0.5 | 0.6 | 6.7 | 51.2 | 26 |
| 2×0.75 | 0.6 | 0.8 | 7.2 | 52.3 | 26 |
| 2×1.0 | 0.6 | 0.8 | 7.5 | 59.3 | 19.5 |
| 2×1.5 | 0.7 | 0.8 | 8.6 | 78.7 | 13.3 |
| 2×2.5 | 0.8 | 1 | 10.6 | 119.2 | 7.98 |
| 3×0.75 | 0.6 | 0.8 | 7.6 | 64.8 | 26 |
| 3×1.0 | 0.6 | 0.8 | 8 | 74.3 | 19.5 |
| 3×1.5 | 0.7 | 0.9 | 9.4 | 104.4 | 13.3 |
| 3×2.5 | 0.8 | 1.1 | 11.4 | 157.5 | 7.98 |
- Produced according to BS6500, IEC60227:1993, VDE 0281 standards
- BS6360 Class 5, Solid or Stranded Bare Copper Conductor
- BS7655 TI 1 PVC Insulation
- PVC Sheathed, various colors available
This cable is suitable for fixed wiring of power devices, power lighting of home electric equipment and instruments, inner wiring of electric equipment, electronic equipment, and automation devices. Ideal for use in conduit and for fixed, protected installation of wiring for burglar alarms, public address systems, intercoms, telephone stations, speakers, instrumentation, control systems, and other low voltage circuits that require power limitation and anti-interference capabilities.
-
