  • Quality Low Voltage Torsade Twisted Aluminum Overhead PRC Insulated Aerial Cable 2*16mm2 IP67 Rated for Power Station & Construction Use factory

Low Voltage Torsade Twisted Aluminum Overhead PRC Insulated Aerial Cable 2*16mm2 IP67 Rated for Power Station & Construction Use

Basic Properties
Place of Origin: Hebei, China
Brand Name: Minfeng
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: ABC Cable
Trading Properties
Minimum Order Quantity: 100m
Price: 0.1-5
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Tags

Aerial Bundle Cable

ABC Electrical Cable

ACSR Conductor Cable
Specifications
High Light:

Low Voltage Torsade Aluminum Aerial Cable

,

2*16mm2 PRC Insulated ABC Cable

,

IP67 Rated Overhead Cable Construction
Product Description
Product Overview

The Low Voltage Torsade Twisted Aluminum Overhead PRC Insulated Aerial Cable (2×16 mm²) is engineered for reliable power distribution in demanding environments such as power stations and construction sites. Its twisted aluminum conductor design delivers superior flexibility, durability, and stable performance for overhead electrical installations.

Key Specifications
Rated Voltage 0.6 kV, 1 kV
Size 2 × 16 mm²
Conductor Material Aluminum
Insulation Material XLPE
Working Temperature −40°C to 220°C
Jacket No Sheath
IP Level IP67
Application Overhead
Rated Current 50 A, 40 A, 30 A, 25 A, 20 A, 16 A, 10 A
Type Low Voltage
Place of Origin Hebei, China
Model Number JKLYJ
Brand Name OEM
Key Features & Benefits
  • Low Voltage Torsade: Efficient for electrical installations with 2×16 mm² conductors.
  • Twisted Aluminum Design: Provides superior flexibility and durability for easy handling.
  • Insulated Aerial Cable: Suitable for outdoor use, protecting against weather elements.
  • High-Performance Conductor Material: Aluminum ensures reliable power transmission.
  • Torsade Construction: Reduces cable movement and improves stability during installation.
Related Search Terms
  • torsade aluminum cable 2×16mm²
  • twisted aluminum cable 2×16mm²
  • overhead cable 2×16mm²
  • PRC insulated cable 2×16mm²
  • ABC cable 2×16mm²
  • 2×16mm² air cable
Product Images

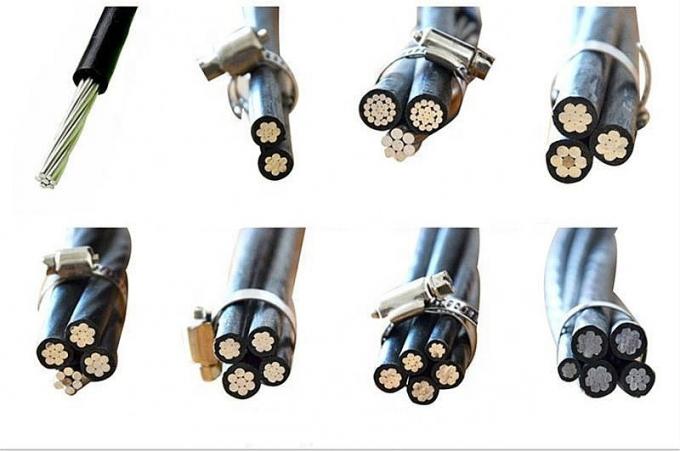

Low voltage torsade twisted aluminum overhead PRC insulated aerial cable 2×16mm² — full product view
Close-up detail of twisted aluminum conductor and XLPE insulation on 2×16mm² overhead aerial cable
