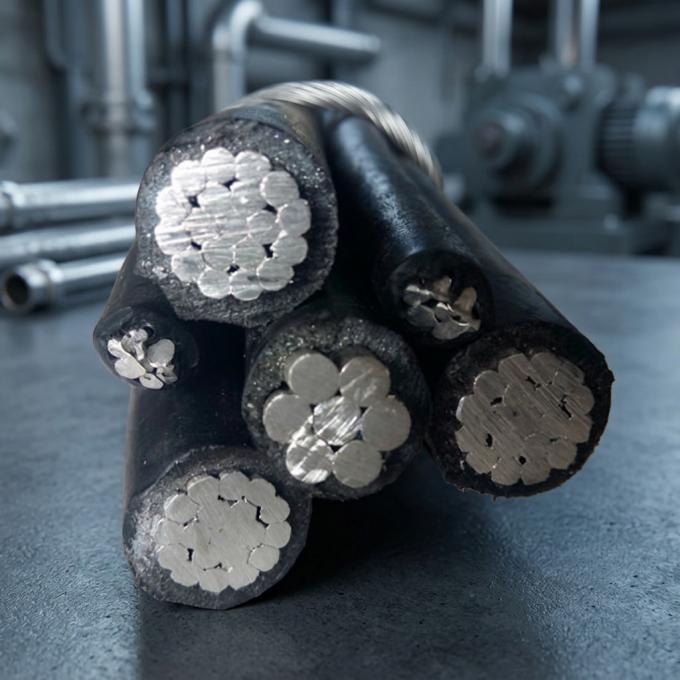

PRC Aluminum XLPE Insulated Overhead Twisted Torsade BT Cable 3*70+1*35mm NFC 33 209
| Type Of Company: | Manufacturer | Production Time: | 10days |
| Material: | Aluminum | Insulation Type: | XLPE |
| Advantage: | 20 Years Production Experience | Model Type: | ABC Cable |
| Cable Standard: | IEC | Port: | Shanghai Or Qingdao |
| Drum Length: | 500m Per Drum | ||
| High Light: | Aluminum XLPE overhead twisted cable,3*70+1*35mm ABC cable,NFC 33 209 overhead cable |
||
The PRC Aluminum XLPE Insulated Overhead Twisted Torsade BT Cable (3×70 + 1×35 mm², NFC 33 209) is a low-voltage overhead distribution cable engineered for reliable power transmission in industrial, commercial, and residential networks. Its twisted torsade construction combines aluminum conductors with cross-linked polyethylene (XLPE) insulation, delivering durability, flexibility, and stable performance across demanding environmental conditions.
| Rated Voltage | 0.6 kV / 1 kV |
|---|---|
| Size | 3 × 70 mm² + 1 × 35 mm² |
| Conductor Material | Aluminum |
| Insulation Material | XLPE (Cross-Linked Polyethylene) |
| Working Temperature | -40°C ~ 125°C |
| Jacket | No Sheath |
| IP Level | IP65 |
| Application | Overhead |
| Rated Current | 50 A, 40 A, 30 A, 25 A |
| Type | Low Voltage |
| Place of Origin | Hebei, China |
| Model Number | Torsade Cable |
| Brand Name | OEM |
| Flame Retardant Class | Not Rated |
- High-Quality Insulation: Provides superior protection against environmental factors.
- Twisted Torsade Construction: Ensures enhanced durability and flexibility.
- NFC Compatibility: Ideal for modern devices requiring proximity technology.
- 3 × 70 mm² + 1 × 35 mm² Configuration: Robust design for high-power applications.
- 33 m Length: Sufficient for most industrial and residential installations.
-
