Aluminum Conductor Stranded XLPE Low Voltage Electrical Cable 4 Core 4*25mm2

Basic Properties
Place of Origin: Hebei, China
Brand Name: Minfeng
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: ABC Cable
Trading Properties
Minimum Order Quantity: 100m
Price: 0.1-5
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Tags

Aerial Bundle Cable

ABC Electrical Cable

ACSR Conductor Cable
Specifications
Rated Voltage: 0.6/1KV Free Smaple: Yes
Conductor: Aluminum Core Mark: Color Strip Or Number
Keywords: ABC Cable Insulation: XLPE
High Light:

XLPE Low Voltage Electrical Cable

,

4 Core Aluminum Conductor Cable

,

Stranded 4*25mm2 ABC Cable
Product Description
Product Overview

The Aluminum Conductor Stranded XLPE Low Voltage Electrical Cable (4 Core, 4×25 mm²) is engineered for reliable power transmission across demanding environments. Combining a lightweight aluminum conductor with high-performance XLPE insulation, this cable delivers stable electrical performance, weather resistance, and long service life — making it suitable for residential, commercial, industrial, and outdoor installations.

Key Specifications
Rated Voltage 1 kV, 0.6 kV
Size 4×25 mm²
Conductor Material Aluminum
Insulation Material XLPE
Working Temperature -40°C ~ 125°C
Jacket No Sheath
IP Level IP65
Rated Current 50 A, 40 A, 30 A, 20 A
Type Low Voltage
Flame Retardant Class Class D
Model Number JKLYJ
Brand Name OEM
Place of Origin Hebei, China
Application Marine, Industrial, Home Appliance, Construction, Computer, Building, Automotive Wiring, Mining, Photovoltaic Power, Power Distribution, Power Station, Railway, Telecommunication, Underground
Product Features
  • Aluminum Conductor: Durable and lightweight for reliable power transmission.
  • XLPE Insulation: Superior dielectric strength and long-term stability.
  • 4×25 mm² Cross-Section: High current-carrying capacity for efficient power distribution.
  • Low Voltage Application: Ideal for residential and small commercial installations.
  • IP65 Rating: Weather-resistant and suitable for outdoor use.
Related Product Names
  • ABC Cable 4×25 mm²
  • Aluminum Cable 4×25 mm²
  • Twisted Cable 4×25 mm²
  • XLPE Cable 4×25 mm²
  • Overhead Cable 4×25 mm²
  • ABC Aluminum Wire 4×25 mm²
Product Image

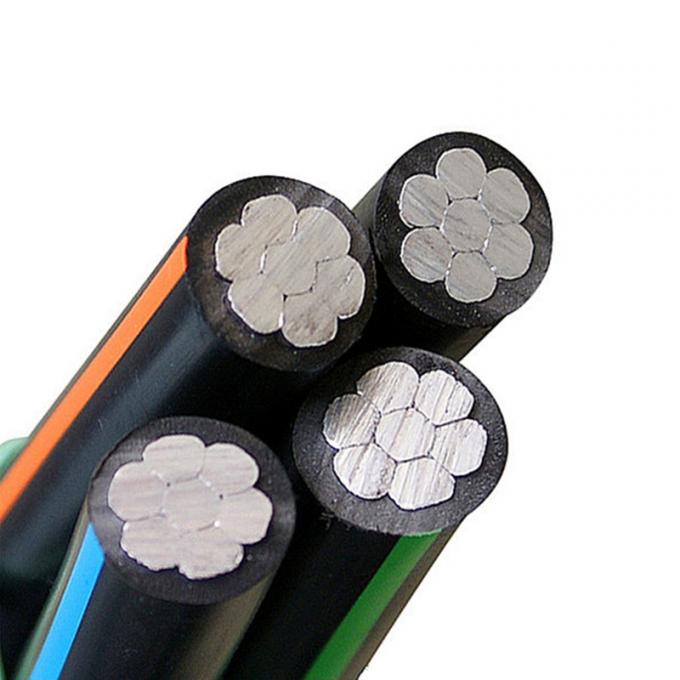

Aluminum conductor stranded XLPE low voltage electrical cable, 4 core 4×25 mm², showing twisted cable construction with XLPE insulation
