3x25+1x16mm2 XLPE CABLE Underground Cable 0.6/1KV Mongolia Market

Basic Properties
Place of Origin: Hebei, China
Brand Name: Minfeng
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: 3x25+16mm2 cable
Trading Properties
Minimum Order Quantity: 100m
Price: 0.1-5
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Tags

XLPE Submarine Cable

XLPE Insulated Armoured Cable

XLPE Power Cable
Specifications
Pakcing: Steel-wooden Drum Cable Type: Underground Cable
Minimum Order: 500 M Cable Length: 500m-1000m
Insulation: XLPE (Cross-Linked Polyethylene) Outer sheath: PVC, PE
Hs Code: 8544492100 Armoured Type: Unarmoured
Voltage Rating: 0.6/1kV Temperature Rating: 90℃
High Light:

3x25+1x16mm2 XLPE underground cable

,

XLPE insulated power cable 0.6/1KV

,

Mongolia market underground power cable
Product Description
3x25+1x16mm² XLPE Underground Cable 0.6/1KV Mongolia Market
Product Overview

High-quality 3x25+1x16mm² XLPE insulated underground power cable designed for the Mongolia market, featuring aluminum conductors and rated for 0.6/1KV applications.

Key Specifications
Type Insulated
Rated Voltage 0.6/1KV
Conductor Material Aluminum
Insulation Material XLPE
Conductor Type Stranded
Application Underground
Place of Origin Hebei, China
Brand Name Minfeng
Usage Power Transmission
Jacket PE/PVC
Package Wooden
Delivery Time 15-60 days
Standard IEC 60502-1
Product Images

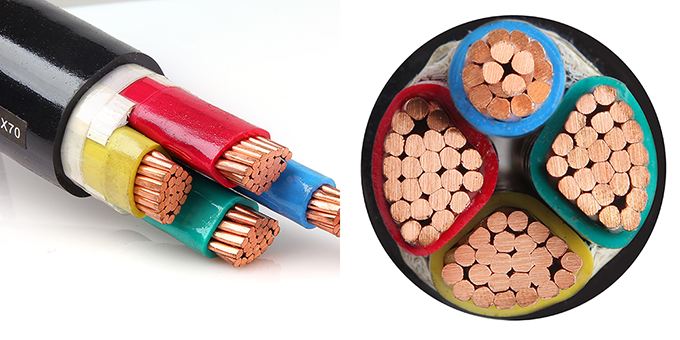

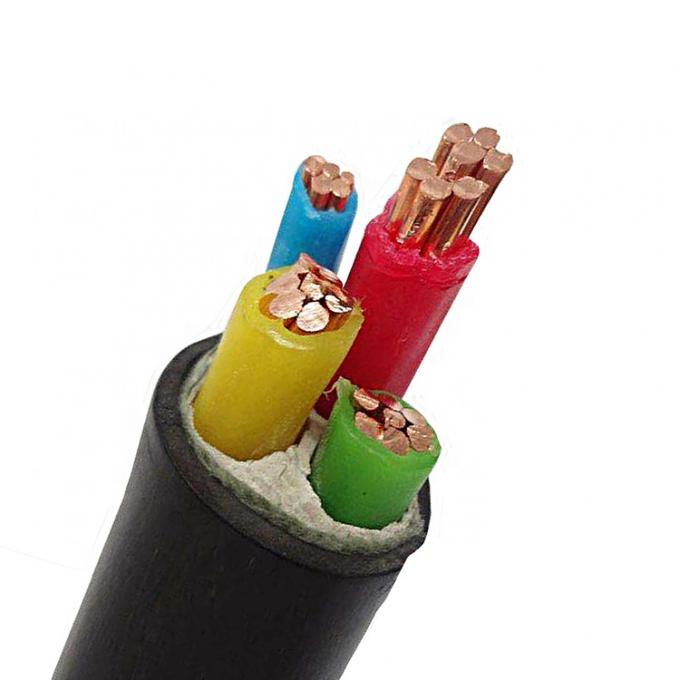

3x25+1x16mm² XLPE Underground Cable close-up view 3x25+1x16mm² XLPE Underground Cable cross-section 3x25+1x16mm² XLPE Underground Cable packaging 3x25+1x16mm² XLPE Underground Cable technical diagram 3x25+1x16mm² XLPE Underground Cable specifications
Technical Specifications
Type Specification Outer Diameter of Conductor Nominal Thickness of Insulation Nominal Sheath Thickness Approx. Outer Diameter of Cable Approx. Weight of Cable Ampacity of Cable (Air) Ampacity of Cable (Soil)
YJV CU/XLPE/PVC YJLV AL/XLPE/PVC mm² mm mm mm mm kg/km A A
3×4+1×2.5 RE 2.24/1.78 0.7/0.7 1.8 12.7 255.5 165.3 40/30 55/45
3×6+1×4 RE 2.76/2.24 0.7/0.7 1.8 13.9 349.4 212.6 50/40 65/55
3×10+1×6 CC 3.8/2.76 0.7/0.7 1.8 16.1 505.2 281.4 70/55 90/70
3×16+1×10 CC 4.8/3.8 0.7/0.7 1.8 18.6 730.9 370.2 90/70 110/90
3×25+1×16 CC 6.0/4.8 0.9/0.7 1.8 22.1 1093.4 527.5 130/105 150/120
3×35+1×16 CC 7.0/4.8 0.9/0.7 1.8 23.9 1384.8 632.4 165/130 185/140
3×50+1×25 SM 8.0/6.0 1.0/0.9 1.8 24.9 1901.4 813.3 200/160 210/170
3×70+1×35 SM 9.5/7.0 1.1/0.9 1.9 28.7 2599.1 1075.7 285/203 265/203
3×95+1×50 SM 11.0/8.4 1.1/1.0 2.1 31.9 3470.6 1387.6 320/255 315/250
3×120+1×70 SM 12.4/10.0 1.2/1.1 2.2 34.9 4401.4 1727.7 380/300 360/285
3×150+1×70 SM 13.8/10.0 1.4/1.1 2.3 38.9 5309.0 2075.6 440/350 400/320
3×185+1×95 SM 15.4/11.5 1.6/1.1 2.5 44.2 6614.5 2572.9 505/490 435/350
3×240+1×120 SM 17.5/13.0 1.7/1.2 2.7 48.5 8456.4 3233.4 603/471 524/415
3×300+1×150 SM 19.6/14.5 1.8/1.4 2.9 53.4 10499.0 3970.2 700/545 605/465
Key Features & Specifications
  • Conductors: Aluminum
  • Both armored and non-armored type power cables are available
  • Voltage rating: 0.6/1KV
  • XLPE Insulated
  • Standards: IEC, BS, ASTM, NFC, AS, GOST etc. or other special characteristics as customers request
  • Max Long-time operating temperature of PVC insulated cable is 70°C, XLPE 90°C
  • Installing temperature of cable should not be less than 0°C
  • Max short-circuit temperature is: PVC not exceed 160°C, XLPE 250°C, Not more than 5 Sec
  • Permitting bending radius cable: Not less than 12 D times (D: external diameter of cable)
