300mm2 4-Core AL XLPE PVC Insulated SWA Aluminium Steel Wire Armoured Power Cable Black Underground

Name: 300mm2 4-Core AL XLPE PVC Insulated SWA Aluminium Steel Wire Armoured Power Cable Black Underground
Brand: Minfeng Cable Group Co., Ltd
SKU: 300mm 4 core swa aluminum cable
Price: 2.10 USD
Availability: InStock

Basic Properties

Place of Origin: Hebei, China

Brand Name: Minfeng

Certification: ISO,CE,IEC,TUV,KEMA

Model Number: 300mm 4 core swa aluminum cable

Trading Properties

Minimum Order Quantity: 100m

Price: 0.1-5

Payment Terms: L/C,T/T

Supply Ability: 100KM/Week

XLPE Submarine Cable

XLPE Insulated Armoured Cable

XLPE Power Cable

Specifications

Drum Length:	500m Or As Per Request	Voltage Rating:	0.6/1 KV
Standardcompliance:	IEC 60502, BS 5467, Or Equivalent	Cable Mark:	Ink Printing Or Embossing
Sheath:	PVC	Material:	Aluminum
Cable Structure:	4 Core	Hs Code:	8544492100
High Light:	300mm2 4-core aluminium power cable , XLPE insulated SWA underground cable , steel wire armoured power cable

Product Description

300mm² 4-Core AL XLPE PVC Insulated SWA Aluminium Steel Wire Armoured Power Cable Black Underground

Product Overview

Steel Wire Armoured (SWA) cable featuring black PVC sheath, XLPE insulation, aluminum conductors, and steel wire armouring. Designed for mains electricity applications including underground laying, power networks, and both external and internal use.

Key Specifications

Rated Voltage 0.6 kV, 1 kV

Size 300mm 4 core SWA aluminum cable

Conductor Material Aluminum

Insulation Material XLPE

Working Temperature 90°C

Jacket PVC

Application Underground

Type Low Voltage

Place of Origin Hebei, China

Standard IEC60502

Core 4 Core

Packing Wooden Drum

Color Black

Applications

Steel Wire Armoured SWA Cable is suitable for direct burial, with the steel wire armouring providing protection from external damage. The XLPE insulation is resistant to various fluids, chemicals, has good heat stability, and is UV resistant.

Standards Compliance

BS 5467, IEC/EN 60502-1, IEC/EN 60228, Flame Retardant according to IEC/EN 60332-1-2

Cable Construction

Conductors: Plain circular, compacted or shaped stranded aluminum conductor (RE=circular solid, CC=compacted circular stranded, SM=sector shaped stranded)
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Color Identification:
- 1 Core: Red or Black
- 2 Cores: Red, Black
- 3 Cores: Red, Yellow, Blue
- 4 Cores: Red, Yellow, Blue, Black
- 5 Cores: Red, Yellow, Blue, Black, Green
- Above 5 Cores: Black Cores with White numerals
Assembly/Inner Sheath: Insulated conductors laid-up with non-hygroscopic fillers and bedded with extruded PVC layer
Armour: Galvanized Steel Wires applied helically over the bedding
Sheath: Extruded PVC Type ST2 as per IEC 60502-1

Special sheath materials available on request: Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC, LLDPE, MDPE, HDPE, LSZH, and CPE.

Technical Data

Voltage: 600/1000V
Operating temperature: Maximum 90°C, minimum bending 0°C
Maximum short-circuit temperature: 250°C (max. 5s)
Minimum bending radius: x20 cable diameter (armoured)

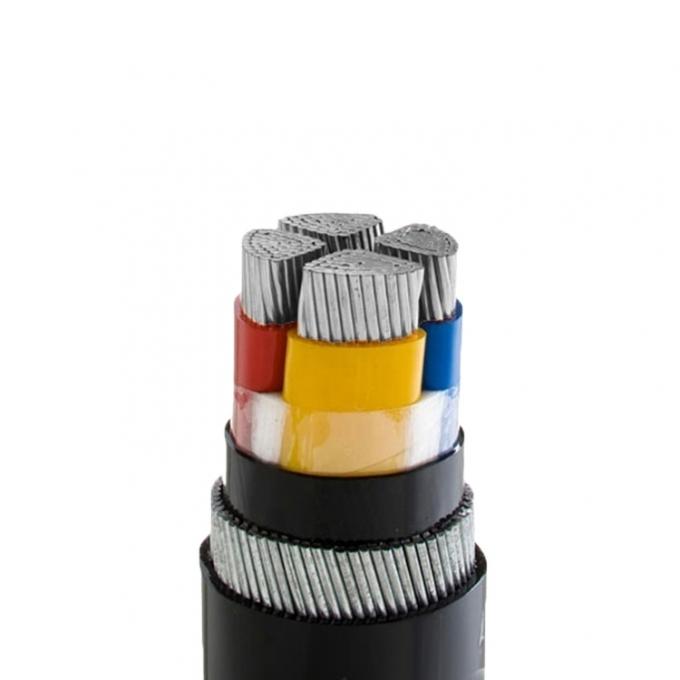

300mm² 4-Core AL XLPE PVC Insulated SWA Aluminium Steel Wire Armoured Power Cable technical specifications

Cable Parameters

Type	Specification	Outer diameter	Nominal thickness of insulation	Diameter of steel wire	Nominal sheath thickness	Approx. Outer diameter of cable	Approx. Weight of cable	Ampacity of cable Air	Ampacity of cable Soil
XLPE/SWA	4×4 RE	2.24	0.7	1.25	1.8	19.1	770 \| 670	37 \| 28	46 \| 35
XLPE/SWA	4×6 RE	2.76	0.7	1.25	1.8	20.3	916 \| 772	47 \| 37	56 \| 46
XLPE/SWA	4×10 CC	3.8	0.7	1.6	1.8	22.3	1148 \| 895	64 \| 47	76 \| 56
XLPE/SWA	4×16 CC	4.8	0.7	1.6	1.8	24.5	1472 \| 1070	84 \| 64	98 \| 76
XLPE/SWA	4×25 CC	6.0	0.9	1.6	1.8	27.5	1942 \| 1317	115 \| 84	126 \| 98
XLPE/SWA	4×35 CC	7.0	0.9	1.6	1.8	29.5	2386 \| 1521	141 \| 115	152 \| 126
XLPE/SWA	4×50 SM	8.0	1.0	2.0	1.9	32.9	3209 \| 2036	172 \| 141	181 \| 152
XLPE/SWA	4×70 SM	9.5	1.1	2.0	2.1	36.7	4197 \| 2502	218 \| 172	222 \| 181
XLPE/SWA	4×95 SM	11.0	1.1	2.0	2.3	40.5	5362 \| 3016	269 \| 218	267 \| 222
XLPE/SWA	4×120 SM	12.4	1.2	2.5	2.4	45.3	6908 \| 3940	313 \| 269	305 \| 267
XLPE/SWA	4×150 SM	13.8	1.4	2.5	2.6	50.0	8327 \| 4683	359 \| 313	344 \| 305
XLPE/SWA	4×185 SM	15.4	1.6	2.5	2.7	54.2	10044 \| 5466	405 \| 359	383 \| 344
XLPE/SWA	4×240 SM	17.5	1.7	2.5	2.9	60.4	12672 \| 6666	451 \| 405	442 \| 383
XLPE/SWA	4×300 SM	19.6	1.8	2.5	3.1	65.7	15302 \| 7795	497 \| 451	461 \| 422

Note: RE=circular solid, CC=compacted circular stranded, SM=sector shaped stranded

Packaging & Shipping

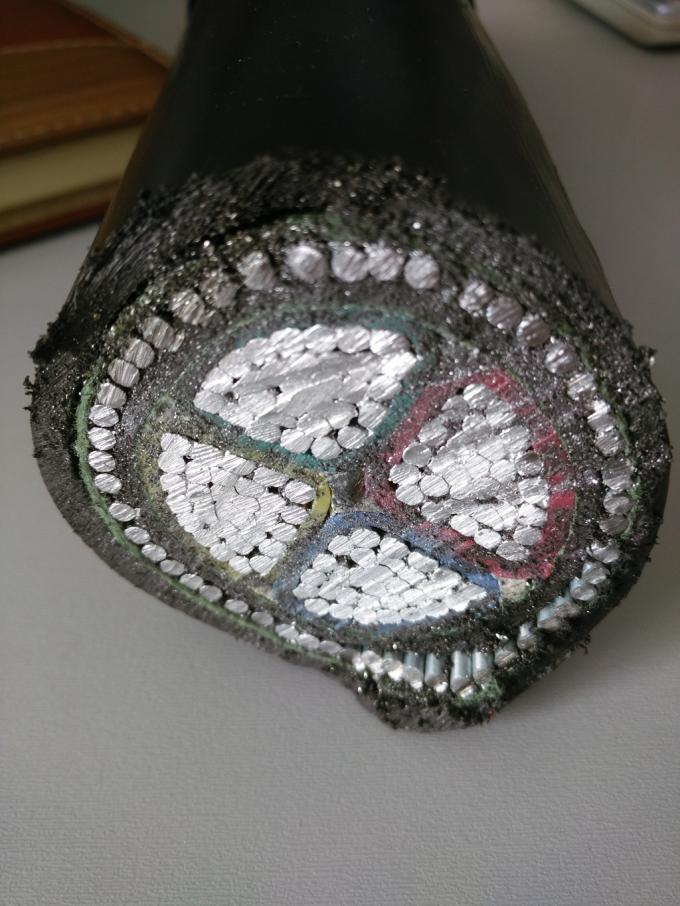

300mm² 4-Core AL XLPE PVC Insulated SWA Aluminium Steel Wire Armoured Power Cable packaging

Packing: Steel wooden drum (fumigation)
Cable length: 1000m/2000m per drum or as per actual requirements
Shipping Port: Tianjin, Qingdao, or other ports as required
Sea freight: FOB/C&F/CIF quotations available

For accurate pricing, please specify required cable length quantity. Larger quantities receive additional discounts. For some countries (Africa, Middle East), our sea freight rates are often more competitive than local shipping agencies.
