YJV VV 3x16+1x10mm2 Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable

Basic Properties
Place of Origin: Hebei, China
Brand Name: Minfeng
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJV VV Cable
Trading Properties
Minimum Order Quantity: 100m
Price: 0.1-5
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Tags

XLPE Submarine Cable

XLPE Insulated Armoured Cable

XLPE Power Cable
Specifications
Packing: Treaty Steel Wooden Drum Standard compliance: IEC, BS, IEEE
Insulationmaterial: XLPE (Cross-Linked Polyethylene) Sample: Available /Free
Sheath: LSZH Range Of Application: Industrial
Temperature Range: -20℃~+90℃ Marking: Laser Printing
High Light:

YJV VV stranded copper wire cable

,

XLPE insulation power cable

,

low smoke halogen-free LSZH sheath cable
Product Description

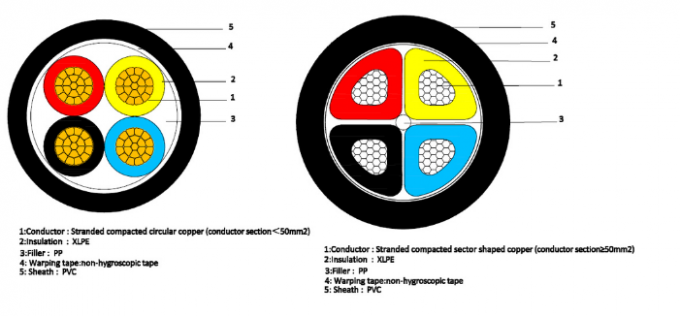

YJV VV 3x16+1x10mm² Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable
Product Overview

High-quality multicore power cable featuring stranded copper conductors, XLPE insulation, and low smoke halogen-free LSZH sheath for safe and reliable power transmission applications.

YJV VV 3x16+1x10mm² Stranded Copper Wire XLPE Insulation With Low Smoke Halogen-free LSZH Sheath Cable
Technical Specifications
Type Insulated
Rated Voltage 600/1000V
Conductor Material Copper
Insulation Material XLPE
Conductor Type Stranded
Application Underground
Core Configuration 3x16+1x10mm²
Jacket Material LSZH
Package Wooden
Delivery Time 15-30 days
Detailed Specifications Table
Type Specification Outer diameter of conductor Nominal thickness of insulation Nominal sheath thickness Approx. outer diameter of cable Approx. Weight of cable Ampacity of cable (Air) Ampacity of cable (Soil)
YJV CU/XLPE/LSZH 3×16+1×10 CC 4.8/3.8 0.7/0.7 1.8 18.6 730.9 90 110
Key Features
  • Conductors: Copper or aluminum options available
  • Both armored and non-armored type power cables available
  • Voltage rating: 0.6/1kV
  • XLPE Insulated for superior performance
  • Complies with international standards: IEC, BS, ASTM, NFC, AS, GOST
  • Maximum long-time operating temperature: PVC 70°C, XLPE 90°C
  • Minimum installation temperature: 0°C
  • Maximum short-circuit temperature: PVC 160°C, XLPE 250°C (not more than 5 seconds)
  • Permitted bending radius: Not less than 12 times the external diameter of cable
Packaging & Shipping

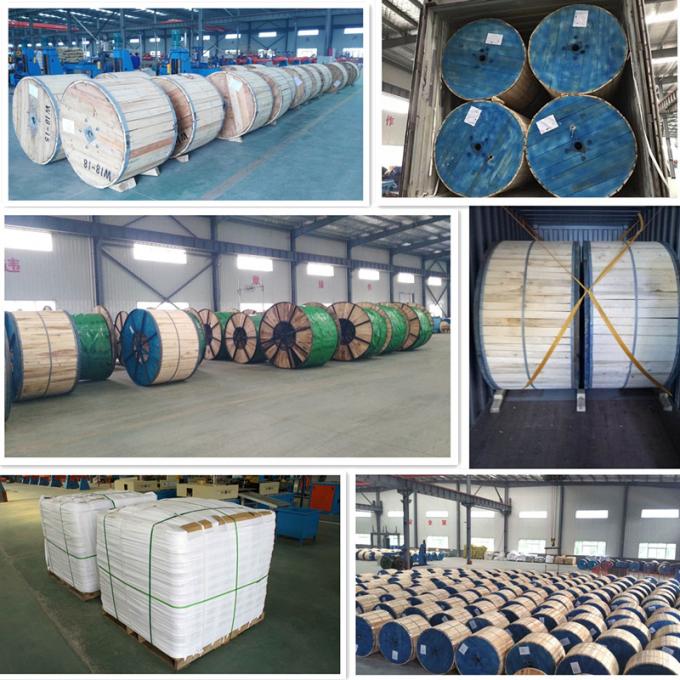

Packaging and shipping of YJV VV 3x16+1x10mm² copper cable

Products are securely packaged in wooden reels to ensure safe transportation and delivery within 15-30 days.
