4*400 Aluminum Power Cable 3*400+1*240 Underground Cable Construction Mining Power Stations Home Appliances XLPE PVC 16A YJLV

Basic Properties
Place of Origin: Hebei, China
Brand Name: Minfeng
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJLV
Trading Properties
Minimum Order Quantity: 100m
Price: 0.1-5
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Tags

XLPE Submarine Cable

XLPE Insulated Armoured Cable

XLPE Power Cable
Specifications
Sheath Material: PVC Model Name: YJLV
Packing Style: Steel Wooden Drum Insulation: XLPE
Cable Jacket: PVC Core Mark: Number Or Color Strip For The Main Core
High Light:

4*400 aluminum power cable

,

3*400+1*240 underground cable

,

XLPE PVC power cable
Product Description
4×400 Aluminum Power Cable 3×400+1×240 Underground Cable
YJLV series aluminum power cable designed for construction, mining, power stations, and home appliances applications. Features XLPE insulation and PVC jacket for underground installation.
Product Specifications
Rated Voltage 0.6 kV
Size 400
Conductor Material Aluminum
Insulation Material XLPE
Working Temperature 90°C
Jacket PVC
Application Underground
Rated Current 10A, 16A, 20A, 25A, 30A, 50A
Type Low Voltage
Place of Origin Hebei
Model Number YJLV
Available Sizes 4×400, 4×400+1×240, 3×400+1×240
Applications & Description

ARVFV RVFV XAV XLPE insulated PVC jacket Cable with enhanced sheath and armor. U-1000 RVFV is suitable for direct burial without extra mechanical protection, fixed to walls, laid on cable trays or raceways. May also be suitable for use in premises with explosion risk (rank BE3 NF C 15-100) where mechanical protection is necessary, requiring a 15% intensity reduction.

Standards & Approvals
  • NF C 32-322
Cable Construction

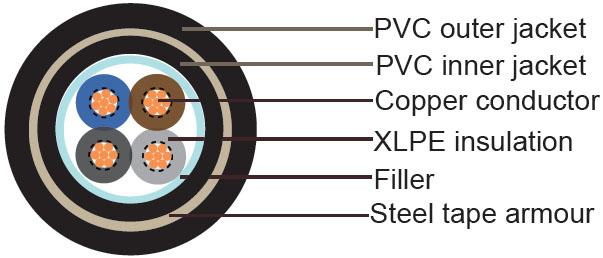

4×400 Aluminum Power Cable construction diagram
  • Flexible copper strands
  • Strands to IEC 60228, ≤4mm² class 1, ≥6mm² class 2
  • XLPE insulation according to NF C 32-321
  • Color codes to HD 308 S2 (NF C32-321)
  • Not fibrous and not hygroscopic filler
  • PVC inner jacket
  • Two steel tapes helically wrapped armour
  • Black PVC outer jacket
Technical Characteristics
Parameter Specification
Working Voltage 600/1000 volts
Test Voltage 1000 volts
Minimum Bending Radius 6 × O
Operation Temperature Range -10°C to 60°C
Short-circuit Temperature 250°C
Flame Retardant NF C 32-070 C2
Insulation Resistance 20 MΩ × km
Product Images
Aluminum power cable close-up view Cable technical specifications diagram Cable cross-section and construction details Cable installation and application examples Cable packaging and spool presentation Complete cable product overview
