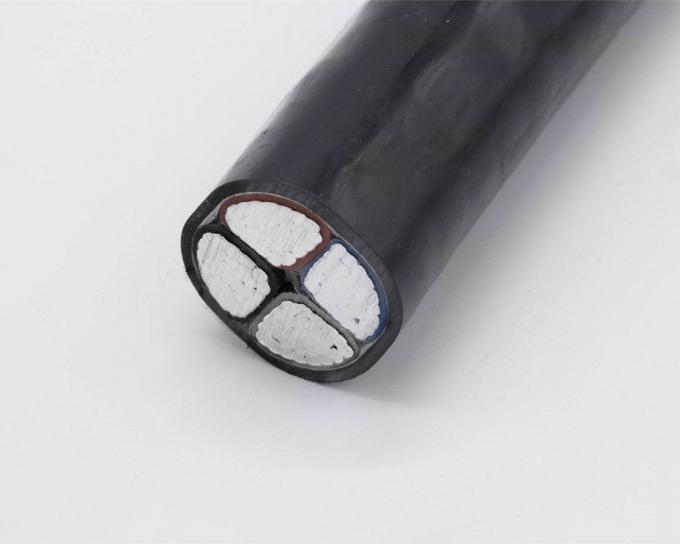

Low Voltage 70mm2 4-Core Aluminium XLPE PVC Insulated Electric Power Cable Competitive Price Per Meter
| Voltage: | 0.6/1 (1.2)kV | Insulation Material: | XLPE |
| Working Temperature: | -15°C To +90°C | Market: | Africa Or Southeast Asia |
| Transport Package: | Wooden Steel Drum | Conductor Material: | Aluminum |
| Model No: | NA2XY 4x240 | ||
| High Light: | Low Voltage 4-Core Aluminium Power Cable,70mm2 XLPE Insulated Electric Cable,PVC Insulated Power Cable with Warranty |
||
Size: 4*70
Conductor Material: Aluminum
Insulation Material: XLPE
Jacket: PVC
Application: Underground
Type: Low Voltage
Place of Origin: Hebei, China
Model Number: NA2XY 4x240
Brand Name: Minfeng OR OEM
Certificate: ISO9001/CCC
Standard: IEC60502
Color: Black

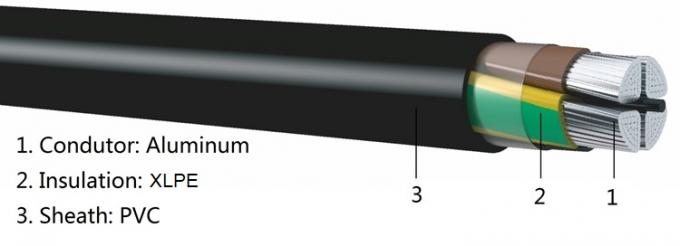

- Conductor: Hard Drawn Aluminum stranded conductor (Class 2)
- Insulation: Cross-linked polyethylene XLPE
- Filler: Non-hygroscopic material
- Binder tape: Non-hygroscopic material
- Outer sheath: Polyvinyl chloride PVC
Test Voltage: 3.5kV for 5 Minutes
Temperature Rating: -15°C to +90°C
Maximum Short Circuit Temperature: +250°C (max 5 seconds)
Installation Note: Environment temperature should be no lower than 0°C for laying the cable
Minimum Bend Radius:
Single core: 15 x overall diameter
Multi core: 12 x overall diameter
| No. of cores and nominal cross section (mm²) | Thickness of Insulation (mm) | Thickness of Sheath (mm) | Approx. overall Diameter (mm) | Approx. weight (kg/km) | Max. DC resistance of conductor(20℃) (Ω/km) | Current carrying capacity In Air(A) | Current carrying capacity In Ground(A) |
|---|---|---|---|---|---|---|---|
| 4X10 | 0.7 | 1.8 | 18.6 | 300 | 3.08 | 50 | 66 |
| 4X16 | 0.7 | 1.8 | 21.0 | 400 | 1.91 | 65 | 85 |
| 4X25 | 0.9 | 1.8 | 24.9 | 570 | 1.20 | 87 | 110 |
| 4X35 | 0.9 | 1.8 | 28.3 | 710 | 0.868 | 105 | 130 |
| 4X50 | 1.0 | 1.8 | 28.4 | 850 | 0.641 | 130 | 160 |
| 4X70 | 1.1 | 2.0 | 33.1 | 1160 | 0.443 | 165 | 195 |
| 4X95 | 1.1 | 2.1 | 37.1 | 1520 | 0.320 | 205 | 235 |
| 4X120 | 1.2 | 2.2 | 40.8 | 1898 | 0.253 | 240 | 265 |
| 4X150 | 1.4 | 2.4 | 45.2 | 2369 | 0.206 | 270 | 300 |
| 4X185 | 1.6 | 2.6 | 52.1 | 2925 | 0.164 | 315 | 340 |
| 4X240 | 1.7 | 2.8 | 57.8 | 3700 | 0.125 | 375 | 395 |
| 4X300 | 1.8 | 3.0 | 63.5 | 4580 | 0.100 | 435 | 445 |
| 4X400 | 2.0 | 3.3 | 70.9 | 5800 | 0.0778 | 510 | 510 |
Cable length: 1000m/2000m per drum or as per actual cable length requirements
Drum size: As per cable length and container size
Shipping Port: Tianjin, Qingdao, or other ports as per your requirements
Sea freight: FOB/C&F/CIF quotation available
-
