Halogen-Free XLPE Insulated Power Cable with Copper Conductor and 16A/30A Rated Current

Basic Properties
Place of Origin: Hebei, China
Brand Name: Minfeng
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: U1000 RO2V
Trading Properties
Minimum Order Quantity: 100m
Price: 0.1-5
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Tags

XLPE Submarine Cable

XLPE Insulated Armoured Cable

XLPE Power Cable
Specifications
Jacket: PVC Rated Voltage: 0.6/1KV
Conductor: Copper Marking: Laser Printing
Corporation: Minfeng Cable Max Onductor Temp: 90 Degree
Armoured Type: Unarmoured Cable Drum Length: 300-500 Meter Per Drum
Model No: U1000 RO2V
High Light:

Halogen-Free XLPE Insulated Power Cable

,

Copper Conductor Power Cable

,

16A/30A Rated Current Power Cable
Product Description
3×1.5 3×2.5 3C × 4 Sqmm Unarmoured CU PVC Electric Power Cable U1000 R02V
Halogen-free XLPE insulation power cable with 16A/30A rated current for low voltage fixed applications.
Key Specifications
Rated Voltage0.6 kV, 1 kV
Conductor MaterialCopper
Insulation MaterialXLPE
Working Temperature90°C
JacketPVC
ApplicationUnderground
Rated Current16 A, 30 A
TypeLow Voltage
Place of OriginHebei, China
Model NumberU1000 RO2V
CertificateISO9001/CCC
StandardNF C 32-321
Application
Low voltage power cable for fixed applications. Copper conductor, XLPE insulation, and PVC outer sheath. Can be used in all low-voltage power installations. Can be fixed on cable trays, within conduits, fixed to walls, or buried directly with extra mechanical protection.
Standards
XP C 32-321 (formerly NF C 32-321), EN 60332-1/NF C 32-070
Construction
  • Conductors: Cu, class 2 according to EN 60228
  • Insulation: XLPE compound
  • Bedding: Extruded elastomere or plastomere compound
  • Sheath: PVC compound
Core Identification (HD 308 S2)
  • 2-core: brown and blue
  • 3-core: brown, black and blue (S=1.5/2.5 mm²)
  • 3-core: brown, black and gray (S≥4 mm²)
  • 3G: brown, blue and yellow/green
  • 4-core: brown, black, gray, blue
  • 4G: brown, black, gray, yellow/green
  • 5G: brown, black, gray, blue, yellow/green
Technical Data
StandardsNF C 32-321 C32-321/A1; IEC 60502-1 NF EN 60332-1-2; NF C 15-100
Nominal Voltage U0/U0.6/1 kV
Test Voltage (50 Hz)4 kV
Maximum Voltage Um1.2 kV
Maximum Operating Temperature+90°C
Maximum Short Circuit Temperature+250°C
Minimum Operating Temperature (without mechanical shocks)-25°C
Minimum Installation and Use Temperature-10°C
Minimum Bending Radius (per D cable diameter in mm)6 × D
Maximum Pulling Stress5 kg/mm² (of copper cross section)
Sheath ColorBlack
Product Images

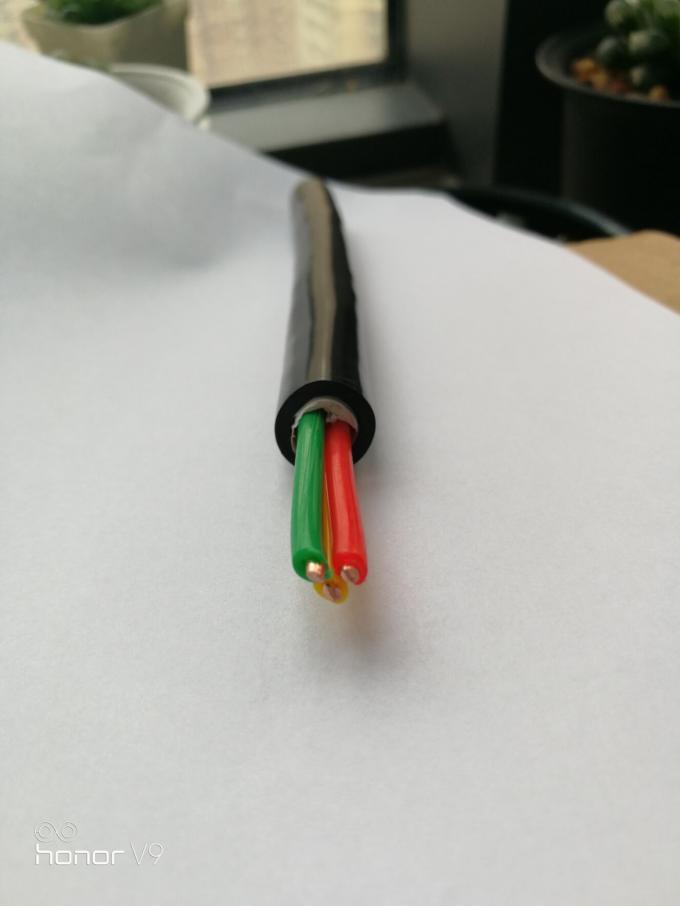

3×1.5 3×2.5 3C × 4 Sqmm Unarmoured CU PVC Electric Power Cable U1000 R02V Close-up view of cable construction and specifications
