4x120 4x150mm2 4 Cores 3 Phase Aluminum Electric Cable Wire Underground Black Al Power Cable 0.6-1kV XLPE Insulation Material
| Voltage rating: | 0.6/1kV | Conductor material: | Aluminum |
| Insulation material: | Cross-Linked Polyethylene (XLPE) | Packing Style: | Steel/ Wooden Drum |
| Operating Temperature: | 90°C | Sheath material: | PVC |
| No Of Core: | 4 Core | ||
| High Light: | 4 core aluminum power cable,underground XLPE insulated cable,3 phase electric cable wire |
||
These cables are designed for power lines of fixed routing in wind tower installation, also used as energy supply cables installed in underground, water, cable ducts, power stations, outdoors, indoors, for industry and distribution boards as well as in subscriber networks, where mechanical damages are not expected.

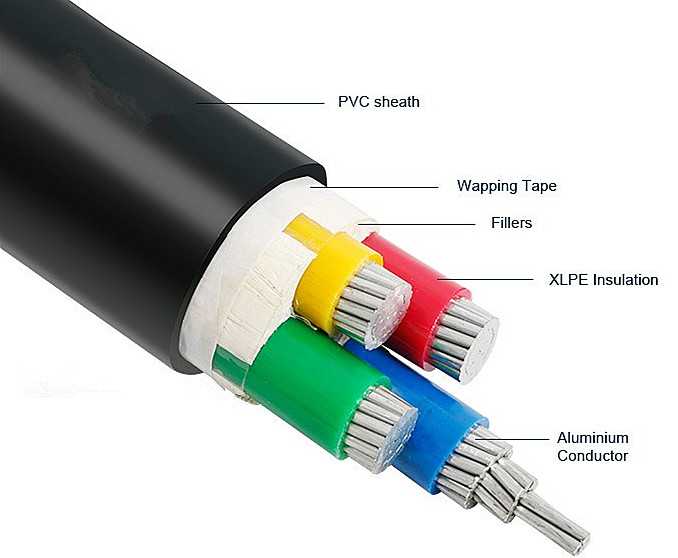

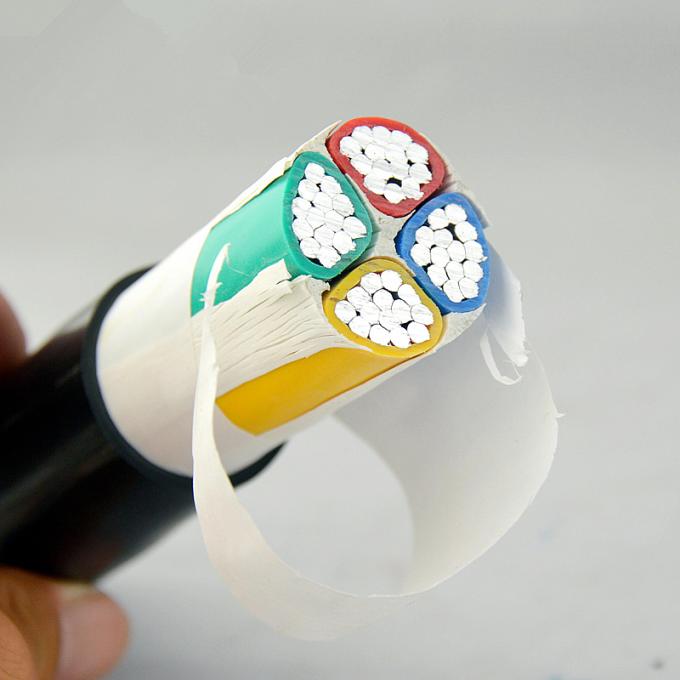

- Conductor: Stranded Aluminum
- Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
- Filler: Polypropylene filament with lapped binding tape
- Binder: Binding tape
- Sheath: Polyvinyl chloride (PVC)
- Maximum conductor operating temperature: 90°C (XLPE) / 70°C (PVC)
- During short circuit (lasting less than 5 seconds): Maximum temperature not above 250°C (XLPE) / 160°C (PVC)
- Environment temperature should be no lower than 0°C for laying the cable
- Single Core Cable: Non Armored Cable 20D, Armored Cable 15D
- Multi-core Cable: Non Armored Cable 15D, Armored Cable 12D
- Note: D means practical external diameter of the cable
| No. of cores and nominal cross section (mm²) | Thickness of Insulation (mm) | Thickness of Sheath (mm) | Approx. overall Diameter (mm) | Approx. weight (kg/km) | Max. DC resistance of conductor(20℃) (Ω/km) | Current carrying capacity In Air(A) | Current carrying capacity In Ground(A) |
|---|---|---|---|---|---|---|---|
| 4X10 | 0.7 | 1.8 | 18.6 | 300 | 3.08 | 50 | 66 |
| 4X16 | 0.7 | 1.8 | 21.0 | 400 | 1.91 | 65 | 85 |
| 4X25 | 0.9 | 1.8 | 24.9 | 570 | 1.20 | 87 | 110 |
| 4X35 | 0.9 | 1.8 | 28.3 | 710 | 0.868 | 105 | 130 |
| 4X50 | 1.0 | 1.8 | 28.4 | 850 | 0.641 | 130 | 160 |
| 4X70 | 1.1 | 2.0 | 33.1 | 1160 | 0.443 | 165 | 195 |
| 4X95 | 1.1 | 2.1 | 37.1 | 1520 | 0.320 | 205 | 235 |
| 4X120 | 1.2 | 2.2 | 40.8 | 1898 | 0.253 | 240 | 265 |
| 4X150 | 1.4 | 2.4 | 45.2 | 2369 | 0.206 | 270 | 300 |
| 4X185 | 1.6 | 2.6 | 52.1 | 2925 | 0.164 | 315 | 340 |
| 4X240 | 1.7 | 2.8 | 57.8 | 3700 | 0.125 | 375 | 395 |
| 4X300 | 1.8 | 3.0 | 63.5 | 4580 | 0.100 | 435 | 445 |
| 4X400 | 2.0 | 3.3 | 70.9 | 5800 | 0.0778 | 510 | 510 |
Our company can produce both flame retardant and non-flame retardant series of PVC power cable. Our products can be produced according to our works specifications which are equivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are superior to standards stated above.
-
