Tinned Copper Conductor Rubber Sheath Welding Cable for Welding Machine with 450V/750V Voltage Rating

Name: Tinned Copper Conductor Rubber Sheath Welding Cable for Welding Machine with 450V/750V Voltage Rating
Brand: Minfeng Cable Group Co., Ltd
SKU: welding cable
Price: 2.10 USD
Availability: InStock

Basic Properties

Place of Origin: Hebei, China

Brand Name: Minfeng

Certification: ISO,CE,IEC,TUV,KEMA

Model Number: welding cable

Trading Properties

Minimum Order Quantity: 100

Price: 0.1-5

Payment Terms: L/C,T/T

Supply Ability: 100KM/Week

Welding Machine Cable

Weld Flex Cable

Welding Ground Cable

Specifications

No Of Core:	1 Core	Conductor Material:	Copper Or Aluminum
Temperature:	90°c	Manufacturer:	Top 3 China Cable Manufacturer
Conductor:	Cu / Al	Voltage Rating:	450V/750V
Sheath:	Rubber

Product Description

Welding Cable for Welding Machine Tinned Copper Conductor Rubber Sheath Fiber Optic Solar Battery Cable

Minfeng Tinned Copper Conductor Rubber Sheath Fiber Optic Cable Welding Machine

Welding cable is designed to transmit large currents from welding machines to welding tools. We can apply the flexible cable to different situations such as on assembly lines and conveyor systems, in machine tool and motor car manufacturing, ship building, for manually and automatically operated line and spot welding machines.

Product Specifications

Size 16mm 25mm² 35mm 35mm² 50mm² 70mm

Conductor Material Copper

Insulation Material Rubber

Working Temperature 90°C

Jacket Rubber

Application Industrial

Type Low Voltage

Place of Origin Hebei, China

Model Number Tinned battery cable

Brand Name Minfeng

Voltage 450/750V

Standard ASTM/IEC60245

Conductor Copper/Tinned Copper

Sheath PVC/Rubber

MOQ 1000M

Sample Available

Warranty 1 Year

Technical Parameters

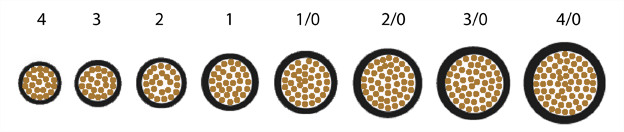

ASTM Standard Welding Cable Parameters

AWG	Nominal Stranding	Nominal Overall Diameter	Approx. Net Weight (lbs/1000ft)	Max. Conductor Resistance at 20℃ (Ω/km)
6	259/30	0.43 inch / 10.92 mm	152	1.33
4	418/30	0.475 inch / 12.07 mm	215	0.84
2	646/30	0.54 inch / 13.72 mm	296	0.53
1	836/30	0.58 inch / 14.73 mm	360	0.42
1/0	1032/30	0.615 inch / 15.62 mm	424	0.33
2/0	1290/30	0.655 inch / 16.64 mm	513	0.26
3/0	1672/30	0.72 inch / 18.29 mm	644	0.21
4/0	2066/30	0.78 inch / 19.81 mm	824	0.17

IEC Standard Welding Cable Parameters

Nom Cross Sectional Area mm²	Conductor Structure No./mm	Nom. Thickness of Sheath mm	Max O.D mm	Cable Approx. Weight Kg/km	Max D.C Resistance (20℃) Ω/km	Permissible Current Rating (A)
10	322/0.20	1.8	9.7	133	1.91	75
16	513/0.20	2	11.5	216	1.16	105
25	798/0.20	2	13	300	0.758	135
35	1121/0.20	2	14.5	406	0.536	170
50	1596/0.20	2.2	17	568	0.379	215
70	2220/0.20	2.4	19.5	780	0.268	265
95	2997/0.20	2.6	22	1037	0.198	325
120	1702/0.30	2.8	24	1314	0.161	380
150	2146/0.30	3	27	1644	0.129	435
185	1443/0.40	3.2	29	1957	0.106	496
